750kW, 690V, 500rpm High-Efficiency Rib-Cooled Induction Motor

19 Views

Category :

ABB MOTORS

Description

Basic Information

Item	Details	Item	Details
Model No.	AXR 500MS12	Series	AXR Series
Motor Type	Three-Phase Squirrel-Cage Induction Motor	Rotor Structure	Squirrel-Cage
Rated Power	Up to 1,800 kW	Rated Power	750 kW
Rated Voltage	690 V / 3 kV / 6 kV / 10 kV	Rated Voltage	690 V
Frequency	50 Hz / 60 Hz	Frequency	50 Hz / 60 Hz
Speed	500–3,600 rpm	Speed	500 rpm
Number of Poles	2P / 4P / 6P / 8P / 10P / 12P	Starting Mode	Direct-on-Line Starting
Cooling Method	IC411 / IC416	Enclosure	Closed Type, Rib-Cooled
Protection Rating	IP55 / IP66	Mounting Arrangement	IM B3 / IM V1
Rotation Direction	CW / CCW	Duty Type	S1
Insulation Class	Class F	Temperature Rise	Class B
Ambient Temperature	-20 °C to +50 °C	Frame Size	315–710 mm
Space Heater	Yes	Temperature Sensor	Yes
Certification	ISO 9001, CCC	Packaging	Standard Seaworthy Packing
Origin	China	HS Code	8501530090
Production Capacity	80,000 units	Application	Indoor / Outdoor

Product Description

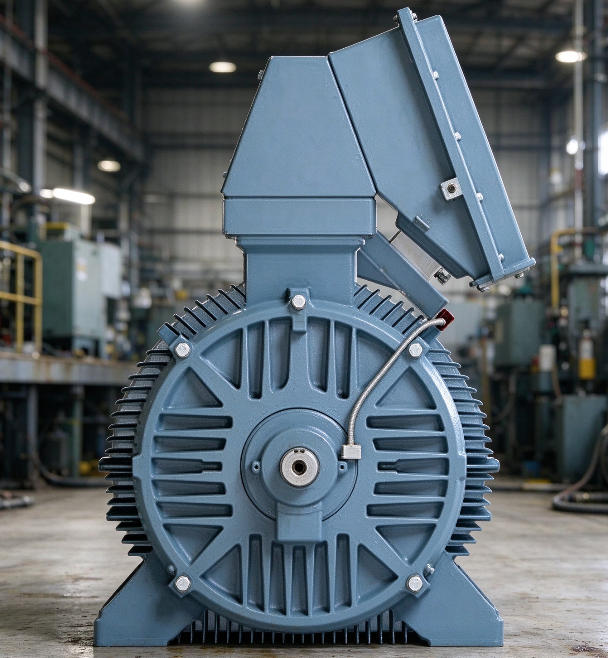

The AXR series rib-cooled motor is a new-generation multipurpose high-efficiency induction motor designed for demanding industrial applications. It delivers high power density, flexible configuration, and convenient maintenance, making it suitable for a wide range of drives and process equipment.

Thanks to its optimized electromagnetic and mechanical design, the AXR motor achieves higher output per kilogram than conventional rib-cooled motors. This allows a more compact installation and, in many cases, enables the use of a smaller frame size for the same output.

The motor features a rugged cast-iron frame and is available with IC411 self-cooling as standard, with IC416 forced cooling available for low-speed or variable-speed applications. Standard protection is IP55, with optional IP66 protection verified by an independent testing organization. The AXR series supports outputs up to 1,800 kW, shaft heights from 315 to 500 mm, and speeds from 500 to 3,600 rpm at 50 Hz and 60 Hz.

Mounting Arrangements

IM B3 / IM 1001: Horizontal floor mounting with feet facing downward.
IM V1 / IM 4011: Vertical mounting with flange and free shaft end facing downward.
IM B35 / IM 2001: Horizontal foot-and-flange mounting with a cylindrical shaft extension and feet facing downward.

Enclosure and Cooling

IC411 / IP55
The motor uses an external shaft-mounted fan to draw ambient air over the ribbed frame surface. The enclosure provides protection against dust ingress and water jets from any direction.

IC416 / IP55
An independently driven cooling fan provides additional cooling capacity, making it suitable for low-speed operation or variable-frequency drive applications.

IP55 Protection

Limited dust ingress is possible but will not affect normal operation.
Water jets from any direction will not cause harmful effects.
IP66 Protection
Completely dust-tight enclosure.
Protected against powerful water jets from any direction.

Packaging

Standard export seaworthy packaging, including plywood cases or fumigated wooden cases, suitable for long-distance transportation by sea or land.

Warranty

Standard warranty: 12 months after commissioning or 18 months after delivery, whichever occurs first. Extended warranty options are available upon request.
