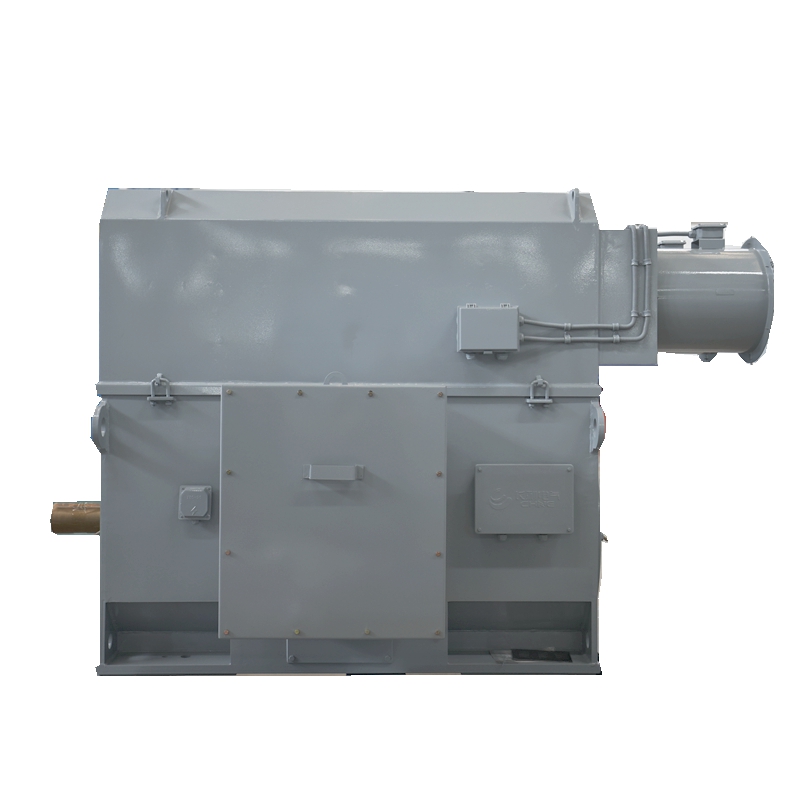

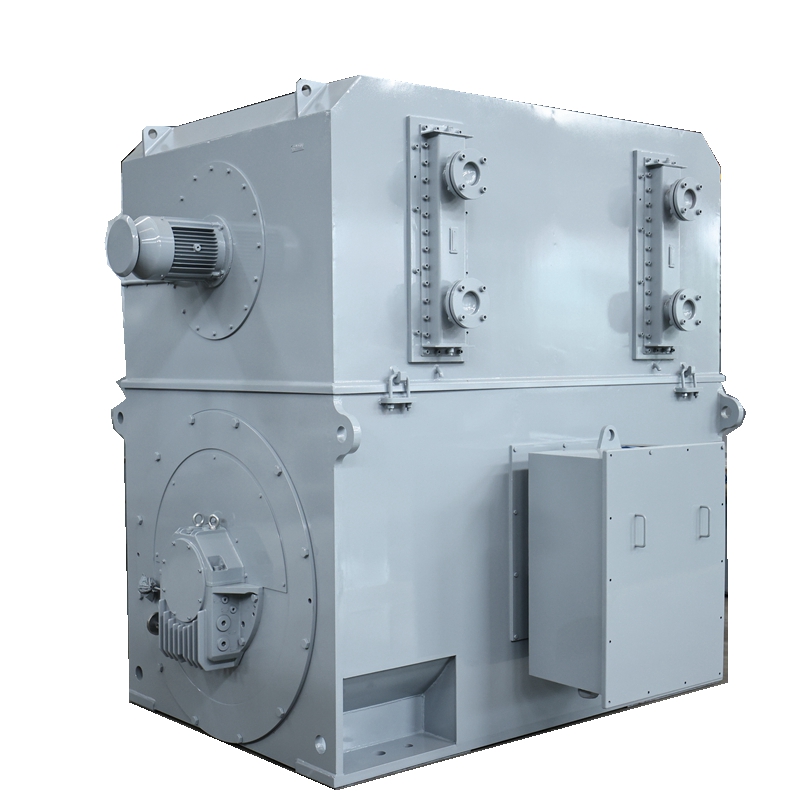

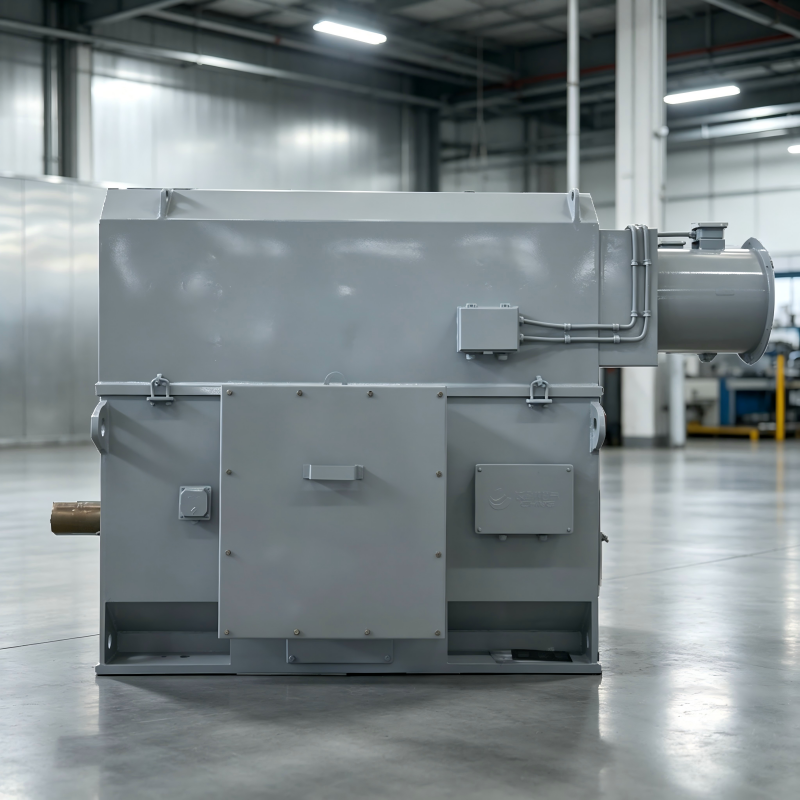

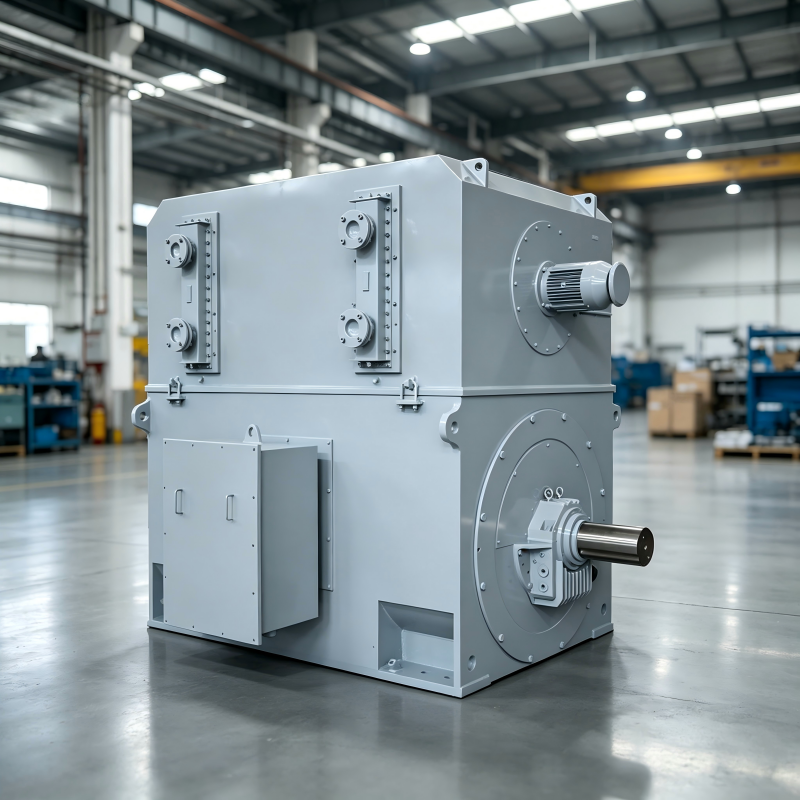

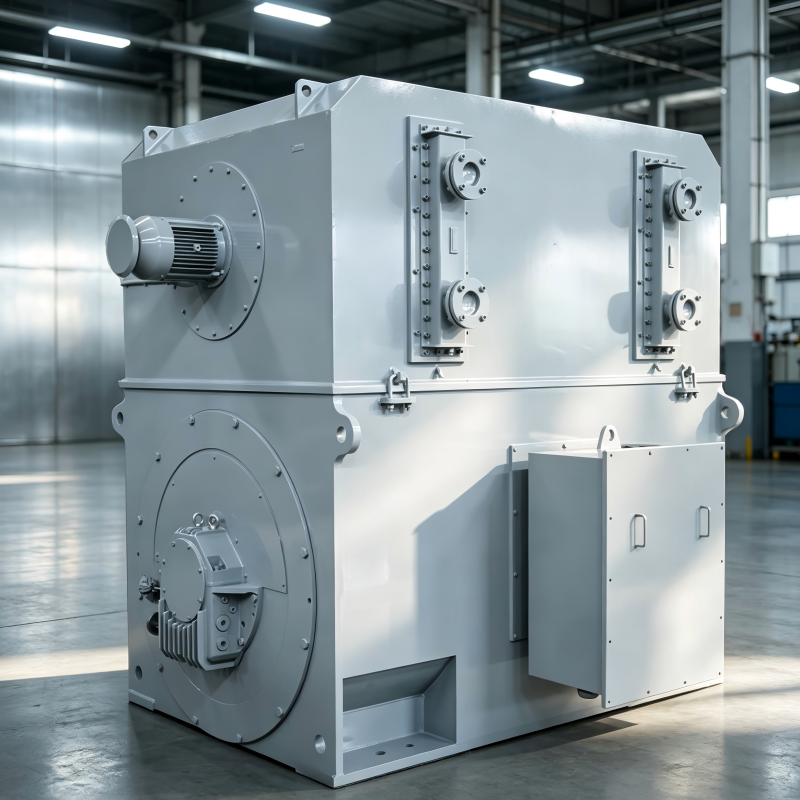

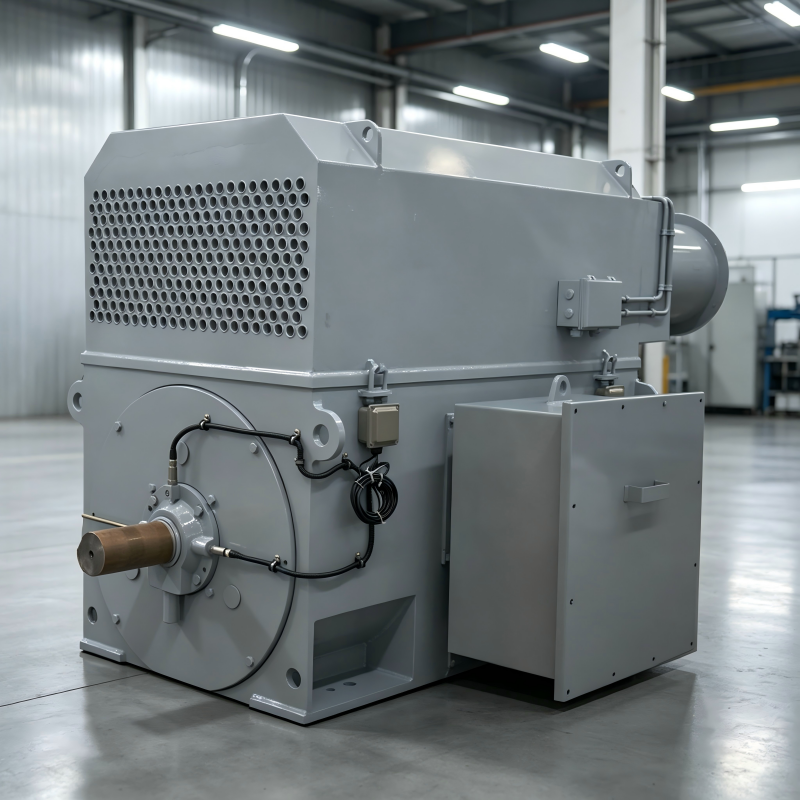

Y, YKK Series High-Voltage Three-Phase Asynchronous Motors Covering frame sizes ranging from 355 mm to 1120 mm, the Y and YKK series high-voltage three-phase asynchronous motors are self-developed premium products of our company. We integrate state-of-the-art domestic and international technologies and deploy modern field analysis technology to carry out accurate electromagnetic computation. Every component undergoes optimized design with meticulous calibration of power loss, wind resistance and structural strength. With more than 70 years of expertise in producing medium and large high-voltage AC motors, paired with a mature, stable design and production system, we manufacture this series using premium raw materials and standardized processing techniques. The motors deliver prominent strengths including high efficiency, low noise, low vibration, outstanding operational dependability, plus simple installation and convenient maintenance.
The YKK Series three-phase asynchronous motors (frame size 355–1120 mm) are high-voltage units developed by integrating advanced domestic and international technologies. Adopting modern field analysis techniques for precise electromagnetic computation, each component is optimized for minimized losses, lower wind resistance and enhanced structural strength. Backed by over 70 years of experience in manufacturing medium and large high-voltage AC motors, the series is produced with high-grade materials and sophisticated processing technologies. These motors feature high efficiency, low noise, low vibration, superior reliability, and easy installation and maintenance, fully adaptable to demanding industrial working conditions.
This series is widely used for driving general mechanical equipment including fans, pumps, compressors, crushers, scrap shredders and belt conveyors. It serves industries such as petroleum, chemical, coal, power plants, metallurgy, transportation, textile, pharmaceutical and grain processing.
By introducing and absorbing advanced domestic and overseas technologies, we adopt a field-circuit coupled method for electromagnetic design. This improves electromagnetic calculation accuracy and provides accurate maximum torque multiples, effectively ensuring excellent motor overload capability.
Finite Element Method (FEM) mechanical analysis is applied throughout structural design and verified by practical operation. Precise boundary conditions are applied to mechanical models to optimize material utilization and control motor vibration and noise. Applicable to various cooling modes, FEM analysis delivers high-precision and intuitive air distribution simulation, improving the accuracy of temperature rise calculation, reducing ventilation loss and further enhancing overall motor efficiency.

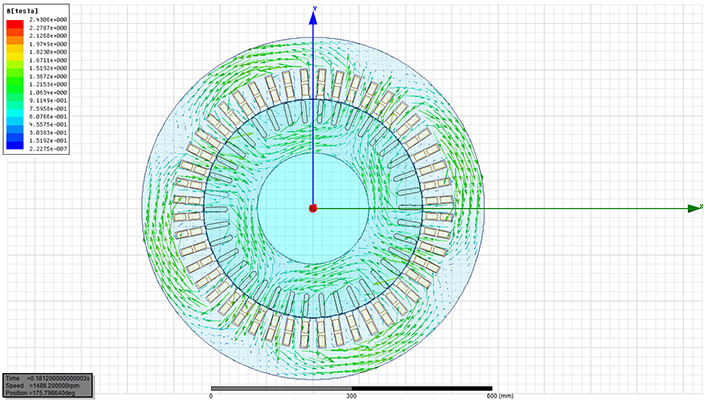

Electromagnetic analysis diagram using the "field and circuit" combination method

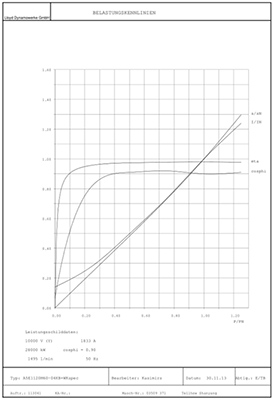

Output curve of electromagnetic calculation

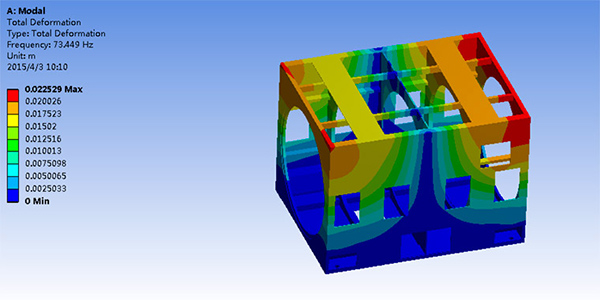

Finite element mechanical analysis method for machine base

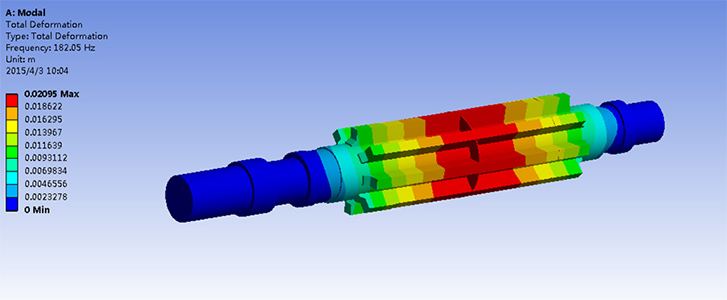

Shaft system analysis
Modeling and analysis of external air path by finite element analysis method

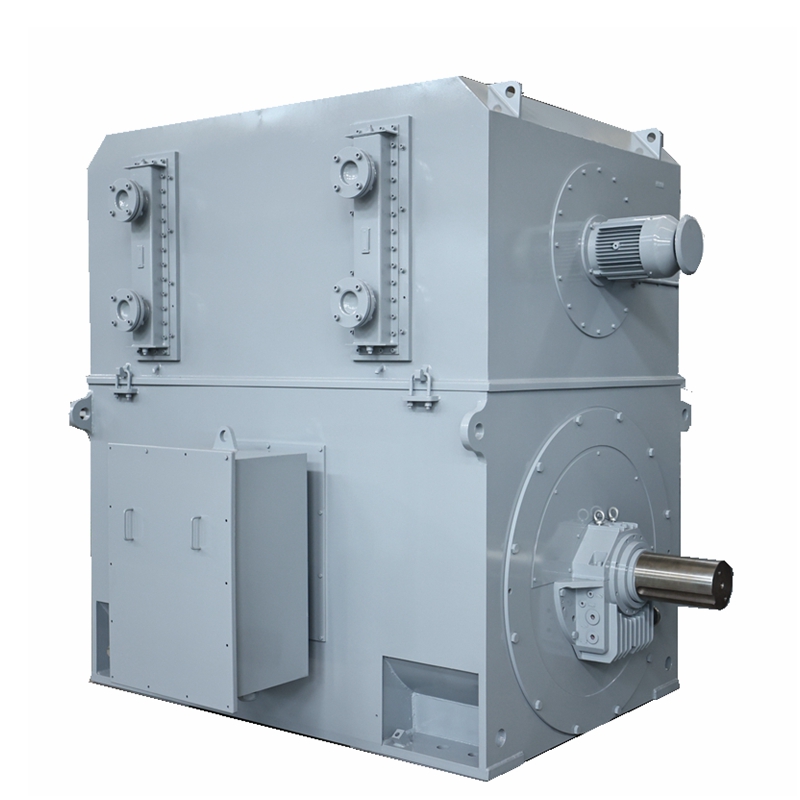

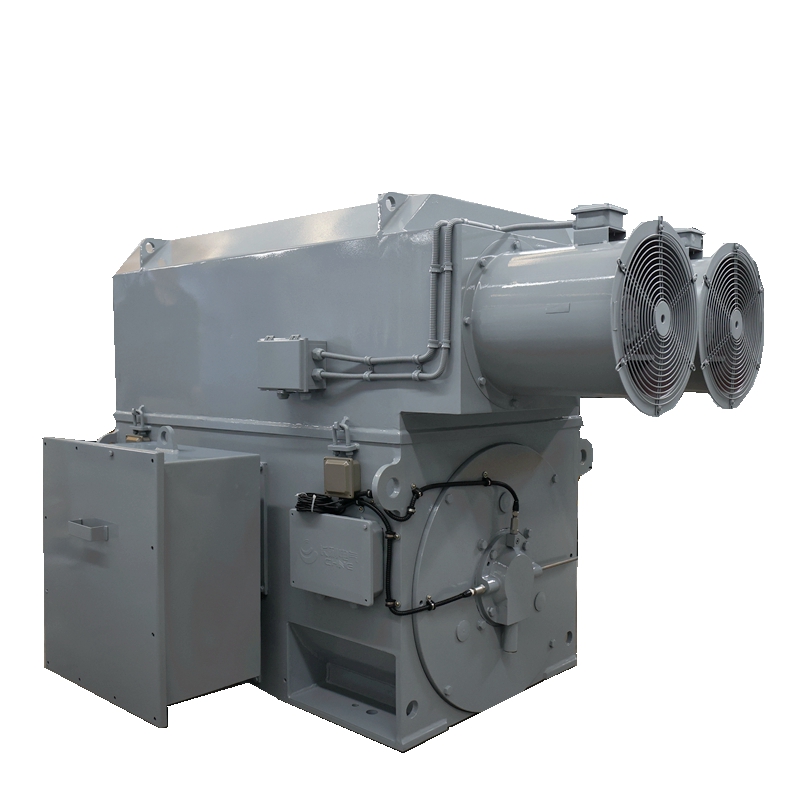

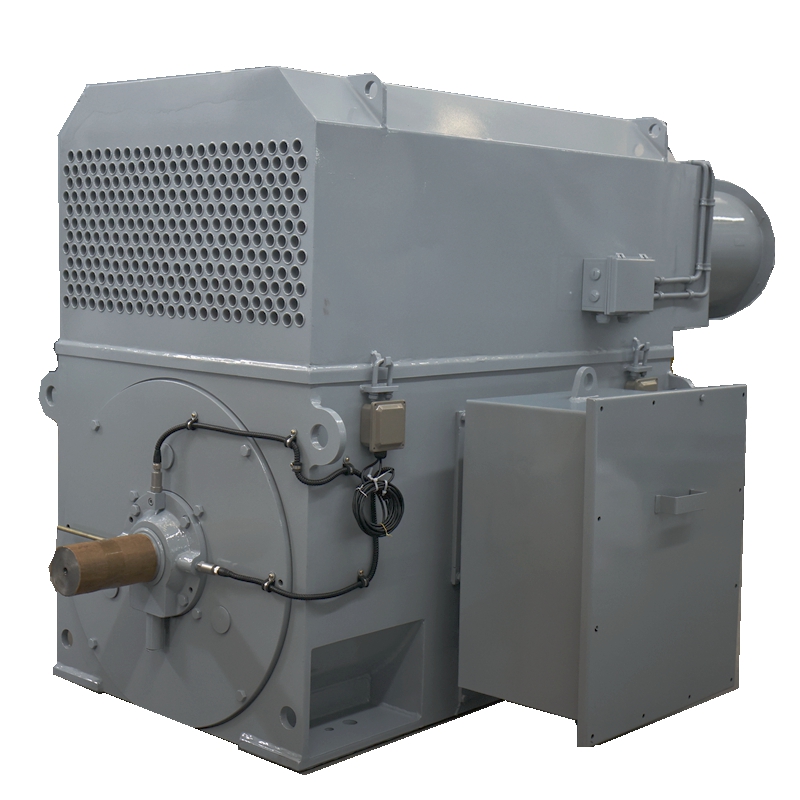

2. This series of motor adopts box structure, the base is made of steel plate welded into box shape, light weight and good rigidity, the top of the motor is installed with protective top cover or cooler, which is convenient for motor heat dissipation, installation and maintenance.
3. The stator adopts external press-fit structure, and the stator and rotor punching sheets are made of low-loss non-oriented cold-rolled silicon steel sheets. The stator winding is made of class F insulation material, which has strong insulation voltage resistance and anti-corona ability, and the winding ends are reliably fixed and tied, and treated with vacuum pressure impregnation solvent-free paint (VPI), so the motor has excellent and reliable insulation performance, high mechanical strength, strong moisture resistance and long service life.
4. The bearings are in the form of rolling bearings and sliding bearings, depending on the power and speed of the motor, and the protection level is IP00, IP23, IP44, IP54 or IP55. The rolling bearing is equipped with a non-stop oil filling and draining device, making it easy for users to use and maintain.
5. The main junction box is placed on the right side of the motor (from the DE), or on the left side according to the user's requirements, and there are separate grounding terminals inside and outside the junction box.
6. According to the user's requirement, temperature measuring devices can be added to the important parts such as stator winding and bearing to facilitate on-site observation and remote monitoring to ensure safe and reliable operation of the motor.
Developed in-house after absorbing advanced design and manufacturing techniques from US Westinghouse and German LDW, our optimized YL Series vertical three-phase asynchronous motors benefit from over seven decades of our high-voltage motor development experience. Split into YLKK and YLKS subseries with separate cooling configurations, they can fully accommodate customized cooling requirements for different applications.
Developed by Changli through in-depth R&D and technology absorption from Westinghouse (USA) and LDW (Germany), the YR Series Wound Rotor Three-Phase Asynchronous Motors represent a premium advanced motor lineup. Boasting more than 70 years of experience in high-voltage motor design and production, we integrate world-leading international technologies with our mature proprietary expertise to manufacture long-lasting, high-performance motor products. The series comes in two cooling type submodels: YRKK and YRKS. Customized to satisfy various industrial cooling demands, they deliver outstanding versatility and stable reliability across a full spectrum of working scenarios.
Y, YKK series high-voltage three-phase asynchronous motors (frame size 355~1120mm) are a series of products developed by our company by introducing advanced technology at home and abroad, adopting modern advanced field analysis technology for electromagnetic calculation, and making fine calculation and optimal design for various losses, wind resistance and strength of each component of the motor. The series of products are developed through mature and reliable design and production system, combined with more than seventy years of experience in manufacturing medium and large high-voltage AC motors; with high-quality materials and scientific processing technology in manufacturing, the motors have the advantages of high efficiency, low noise, low vibration, high reliability and easy installation and maintenance.
Polished Professional Version (for product catalog) A4 Series and Y Series high voltage induction motors enjoy extensive application across multiple industries, including cement plants, mines, steelworks, metallurgical facilities, chemical factories, oil & gas industries and more. We are capable of manufacturing and customizing A4 Series three-phase asynchronous motors fully compliant with GOST standards. Technical Parameters Frame size: 355 mm – 1120 mm Power range: 220 kW ~ 12500 kW Poles: 2 – 16 poles Rated voltage: 3300 V, 4160 V, 6000 V, 6300 V, 6600 V, 10000 V, 11000 V, 13200 V Rated frequency: 50 Hz Protection class: IP23 Cooling method: IC01 Mounting arrangement: IC01 Rotation direction: Clockwise (CW) / Counter-clockwise (CCW) Minor corrections & optimization notes minings → mines; metallurgic plants → metallurgical facilities / metallurgical plants Standard unit format: kW, Hz, V with consistent spacing Fixed typo 132000V to 13200V (likely input slip error) Distinguished Cooling / Mounting with standard industry terms "method / arrangement" Rewrote stiff sentence "in conformity with" to natural industrial wording "fully compliant with" Removed redundant "etc." after listing complete major industries
Frame size: 355mm ~1120mm Power: 200KW to 20MV Pole: 2 ~ 16P Voltage: 3300V, 4160V, 6000V, 6300V, 6600V, 10000V, 11000V, 132000V. Frequency: 50Hz Protection: IP23 Cooling: IC01 Mounting: IM1001 Direction: Both
High Voltage Electric Motors/Asynchronous Motors YKK series high-voltage three-phase asynchronous motor (frame size 355~1120mm) is a series of products developed by our company by introducing, absorbing and digesting advanced technology at home and abroad, adopting modern advanced field analysis technology for electromagnetic calculation, and making fine calculation and optimal design for various losses, wind resistance and strength of each component of the motor. The series of products are developed through mature and reliable design and production system, combined with the company's over seventy years of experience in manufacturing medium and large high-voltage AC motors; the manufacturing of high-quality materials and scientific processing technology, so that it has the advantages of high efficiency, low noise, low vibration, high reliability and easy installation and maintenance. The series products are mainly used in general mechanical equipment such as fans, pumps, compressors, crushers, chip machines, transportation machinery or other similar mechanical equipment in petroleum, chemical, coal, power station, metallurgy, transportation, textile, pharmaceutical and grain processing industries. II. Advantages and characteristics 1.After absorbing and digesting the advanced technology at home and abroad, the company uses the "field and circuit" combination method for electromagnetic design of this series, which improves the calculation accuracy of electromagnetism and can provide accurate maximum torque multiplier, and the overload capacity of the motor is effectively guaranteed. Using FEM mechanical analysis method for structural design, and constantly verified by practice, can accurately apply boundary conditions to the established mechanical model, thus solving the accuracy of the use of materials, control the vibration and noise of the motor; at the same time, FEM mechanical analysis method is applicable to various cooling methods, high accuracy and intuitive air volume distribution, improve the level of temperature rise calculation in motor design, reduce ventilation losses, and improve motor efficiency.
The 2000KW High Voltage Electric Motor is a reliable and efficient solution designed for demanding industrial applications. Covering a wide power range from 0.55KW to 20,000KW and voltage levels from 380V to 13.8KV, it delivers stable performance under heavy-duty operating conditions. This series is widely applied in general mechanical equipment such as fans, pumps, compressors, crushers, chip machines, and transportation machinery. It is also suitable for use in key industries including petroleum, chemical, coal, power stations, metallurgy, transportation, textile, pharmaceutical, and grain processing. With strong overload capacity, high efficiency, and durable construction, the motor ensures long service life and reduced maintenance costs, making it an ideal choice for industrial systems requiring continuous and reliable power output.
High Voltage Electric Motors/Asynchronous Motors YKK series high-voltage three-phase asynchronous motor (frame size 355~1120mm) is a series of products developed by our company by introducing, absorbing and digesting advanced technology at home and abroad, adopting modern advanced field analysis technology for electromagnetic calculation, and making fine calculation and optimal design for various losses, wind resistance and strength of each component of the motor. The series of products are developed through mature and reliable design and production system, combined with the company's over seventy years of experience in manufacturing medium and large high-voltage AC motors; the manufacturing of high-quality materials and scientific processing technology, so that it has the advantages of high efficiency, low noise, low vibration, high reliability and easy installation and maintenance. The series products are mainly used in general mechanical equipment such as fans, pumps, compressors, crushers, chip machines, transportation machinery or other similar mechanical equipment in petroleum, chemical, coal, power station, metallurgy, transportation, textile, pharmaceutical and grain processing industries. II. Advantages and characteristics 1.After absorbing and digesting the advanced technology at home and abroad, the company uses the "field and circuit" combination method for electromagnetic design of this series, which improves the calculation accuracy of electromagnetism and can provide accurate maximum torque multiplier, and the overload capacity of the motor is effectively guaranteed. Using FEM mechanical analysis method for structural design, and constantly verified by practice, can accurately apply boundary conditions to the established mechanical model, thus solving the accuracy of the use of materials, control the vibration and noise of the motor; at the same time, FEM mechanical analysis method is applicable to various cooling methods, high accuracy and intuitive air volume distribution, improve the level of temperature rise calculation in motor design, reduce ventilation losses, and improve motor efficiency.
Founded in 1946, Changsha Changli Electric Co., Ltd. is a leading electric motor factory and a TOP 10 electric motor manufacturer in China. We manufacture and deliver asynchronous motors with squirrel cage or slip ring rotors, synchronous motors, explosion proof motors, tailor-made motors, etc. Power output: 0.55KW to 20MW Voltage: 380V to 13.8KV Frame size: 80mm to 1120mm
