Y, YKK series high-voltage three-phase asynchronous motors (frame size 355~1120mm) are a series of products developed by our company by introducing advanced technology at home and abroad, adopting modern advanced field analysis technology for electromagnetic calculation, and making fine calculation and optimal design for various losses, wind resistance and strength of each component of the motor. The series of products are developed through mature and reliable design and production system, combined with more than seventy years of experience in manufacturing medium and large high-voltage AC motors; with high-quality materials and scientific processing technology in manufacturing, the motors have the advantages of high efficiency, low noise, low vibration, high reliability and easy installation and maintenance.
1. After introducing and absorbing the advanced technology at home and abroad, the company uses the "field and circuit " combination method for electromagnetic design of this series, which improves the calculation accuracy of electromagnetism and can provide accurate maximum torque multiplies, and the overload capacity of the motor can be effectively guaranteed. We use FEM mechanical analysis method for structural design, and constantly verify by practice, can accurately apply boundary conditions to the established mechanical model, thus solving the accuracy of the use of materials, controlling the level of vibration and noise of the motor; at the same time, FEM mechanical analysis method is applicable to various cooling methods, with high accuracy and intuitive air volume distribution, improving the level of temperature rise calculation in motor design, reducing ventilation losses, and improving motor efficiency.

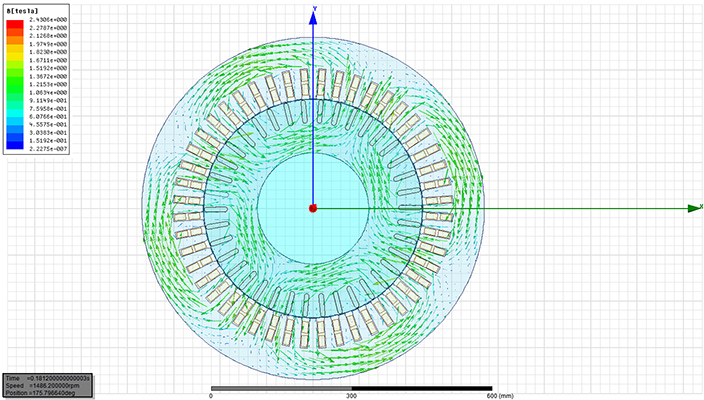

Electromagnetic analysis diagram using the "field and circuit" combination method

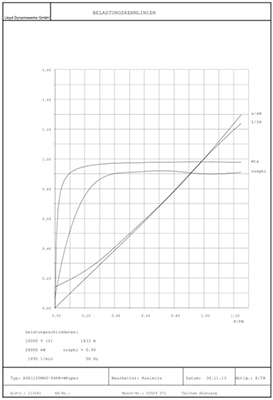

Output curve of electromagnetic calculation

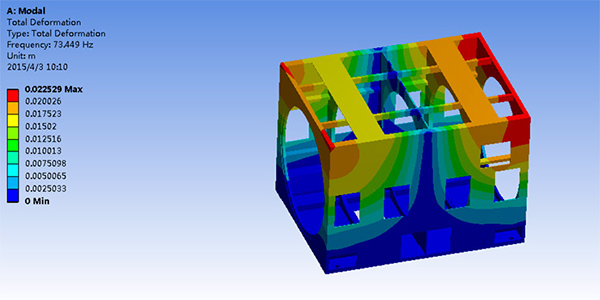

Finite element mechanical analysis method for machine base

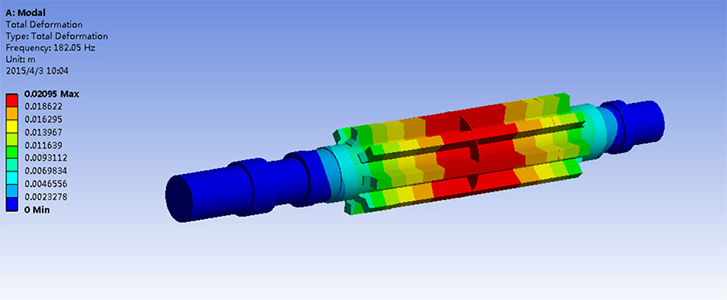

Shaft system analysis

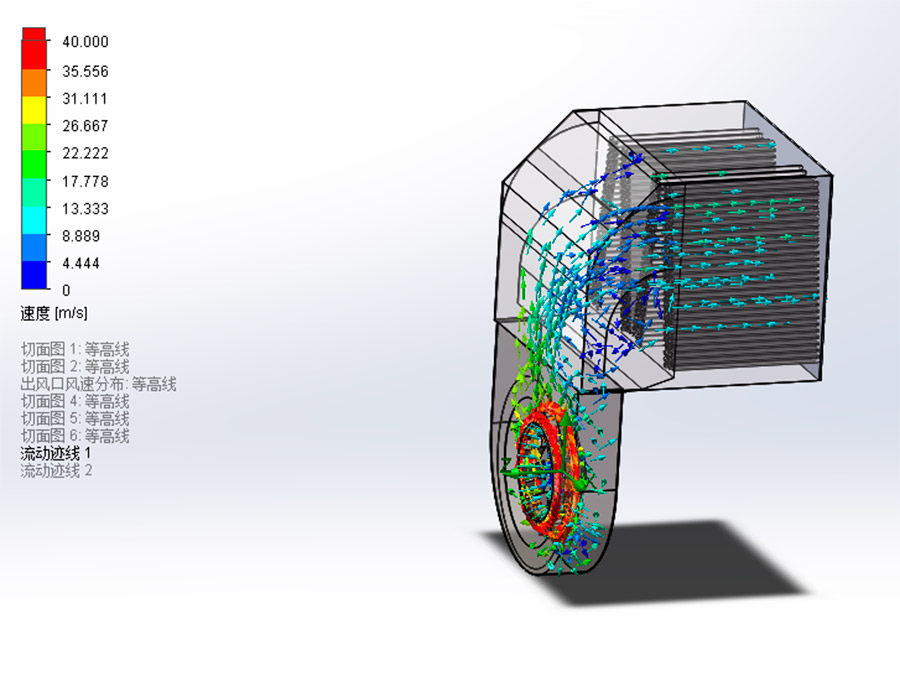

Modeling and analysis of external air path by finite element analysis method

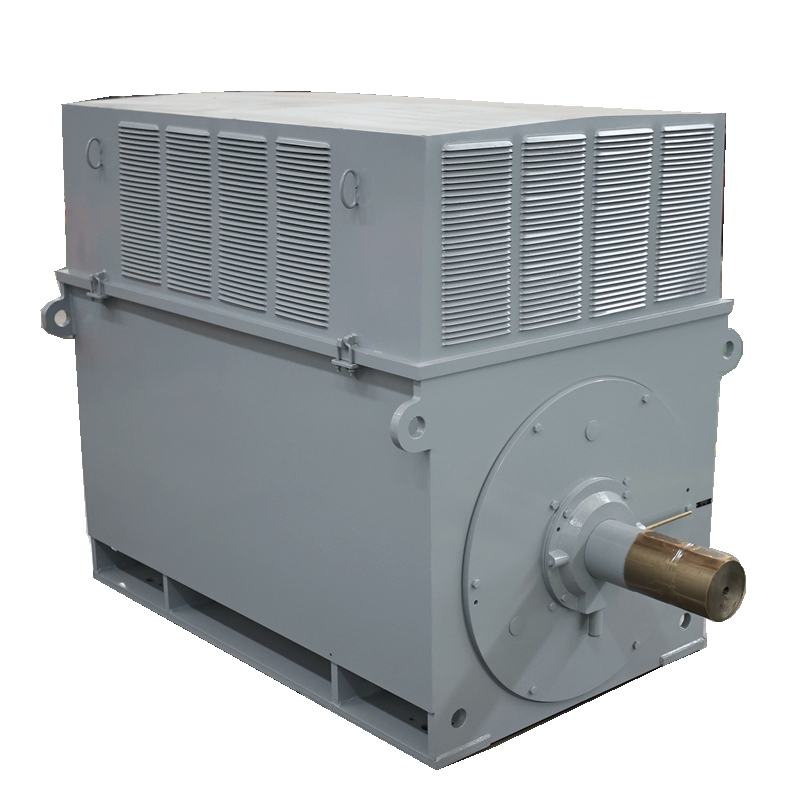

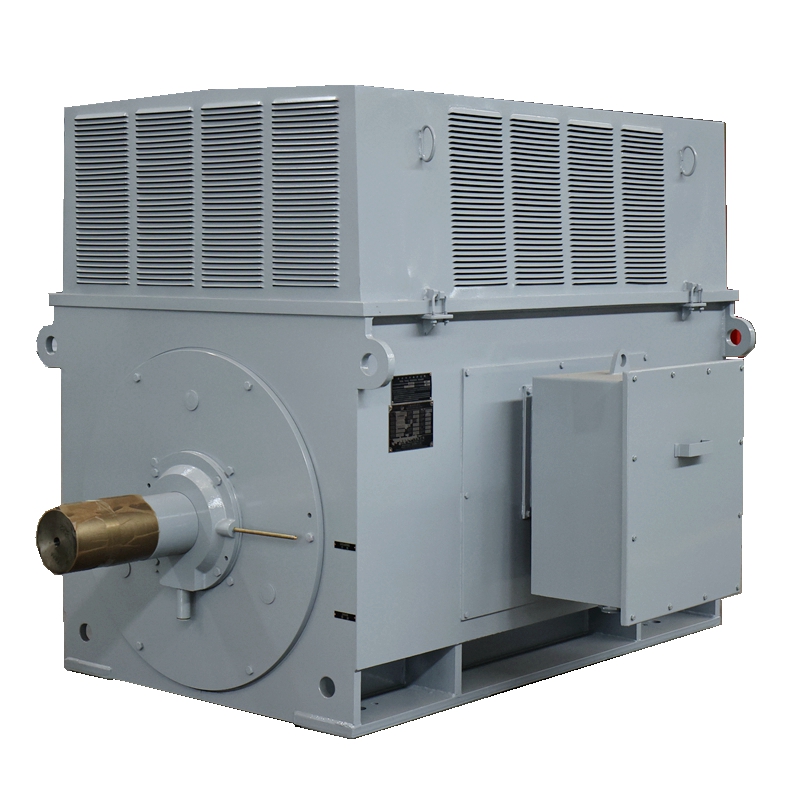

2. This series of motor adopts box structure, the base is made of steel plate welded into box shape, light weight and good rigidity, the top of the motor is installed with protective top cover or cooler, which is convenient for motor heat dissipation, installation and maintenance.
3. The stator adopts external press-fit structure, and the stator and rotor punching sheets are made of low-loss non-oriented cold-rolled silicon steel sheets. The stator winding is made of class F insulation material, which has strong insulation voltage resistance and anti-corona ability, and the winding ends are reliably fixed and tied, and treated with vacuum pressure impregnation solvent-free paint (VPI), so the motor has excellent and reliable insulation performance, high mechanical strength, strong moisture resistance and long service life.
4. The bearings are in the form of rolling bearings and sliding bearings, depending on the power and speed of the motor, and the protection level is IP00, IP23, IP44, IP54 or IP55. The rolling bearing is equipped with a non-stop oil filling and draining device, making it easy for users to use and maintain.

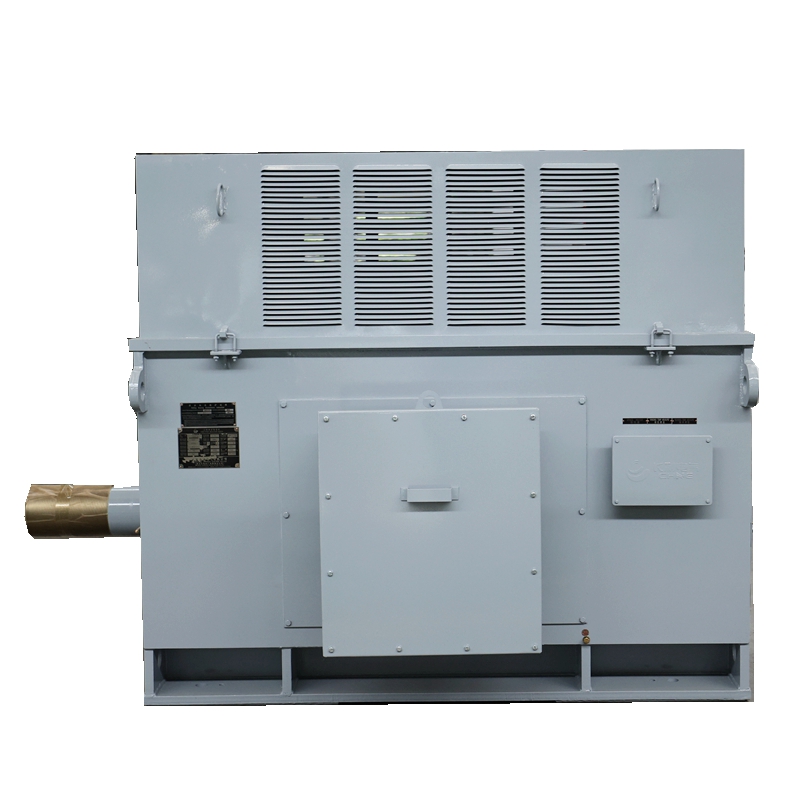

5. The main junction box is placed on the right side of the motor (from the DE), or on the left side according to the user's requirements, and there are separate grounding terminals inside and outside the junction box.
6. According to the user's requirement, temperature measuring devices can be added to the important parts such as stator winding and bearing to facilitate on-site observation and remote monitoring to ensure safe and reliable operation of the motor.
Y2HV Series High-Voltage 3-Phase Asynchronous Motors (Frame Sizes 355–630 mm) are developed by integrating German technology with our rich experience in manufacturing high-voltage flameproof motors. Adopting advanced new processes and premium selected raw materials, this product line delivers high-efficiency performance. Featuring stable and reliable operation, compact structure, low vibration, low noise, lightweight design and outdoor adaptability, these motors meet China’s National Grade 3 Energy Efficiency Standard. Certified for Zone 1 and Zone 2 hazardous locations with explosive gas atmospheres, they act as versatile prime movers widely deployed in mining, general machinery, petrochemical, power plant and other industries to drive various common equipment including compressors, pumps, crushers, winches, centrifuges, scrap shredders, cutting machines and belt conveyors, making them an ideal general drive solution.
Revised Version (same meaning, professional industrial English, smoother & less Chinglish) Developed by integrating mature domestic and international technologies, the Y and YKK series high-voltage three-phase asynchronous motors cover frame sizes ranging from 355 mm to 1120 mm. We adopt cutting-edge electromagnetic field analysis simulation for precise computation, carrying out refined calculation and optimized design for power loss, wind resistance and structural strength of every motor component. Backed by a stable, proven design and production system alongside over 70 years of experience manufacturing medium and large high-voltage AC motors, these motors are produced with premium raw materials and standardized precision machining processes. They deliver outstanding comprehensive performance including high energy efficiency, low noise, slight vibration, reliable operation, as well as simple installation and convenient routine maintenance.
Developed in-house after absorbing advanced design and manufacturing techniques from US Westinghouse and German LDW, our optimized YL Series vertical three-phase asynchronous motors benefit from over seven decades of our high-voltage motor development experience. Split into YLKK and YLKS subseries with separate cooling configurations, they can fully accommodate customized cooling requirements for different applications.
Developed by Changli through in-depth R&D and technology absorption from Westinghouse (USA) and LDW (Germany), the YR Series Wound Rotor Three-Phase Asynchronous Motors represent a premium advanced motor lineup. Boasting more than 70 years of experience in high-voltage motor design and production, we integrate world-leading international technologies with our mature proprietary expertise to manufacture long-lasting, high-performance motor products. The series comes in two cooling type submodels: YRKK and YRKS. Customized to satisfy various industrial cooling demands, they deliver outstanding versatility and stable reliability across a full spectrum of working scenarios.
Y, YKK Series High-Voltage Three-Phase Asynchronous Motors Covering frame sizes ranging from 355 mm to 1120 mm, the Y and YKK series high-voltage three-phase asynchronous motors are self-developed premium products of our company. We integrate state-of-the-art domestic and international technologies and deploy modern field analysis technology to carry out accurate electromagnetic computation. Every component undergoes optimized design with meticulous calibration of power loss, wind resistance and structural strength. With more than 70 years of expertise in producing medium and large high-voltage AC motors, paired with a mature, stable design and production system, we manufacture this series using premium raw materials and standardized processing techniques. The motors deliver prominent strengths including high efficiency, low noise, low vibration, outstanding operational dependability, plus simple installation and convenient maintenance.
Polished Professional Version (for product catalog) A4 Series and Y Series high voltage induction motors enjoy extensive application across multiple industries, including cement plants, mines, steelworks, metallurgical facilities, chemical factories, oil & gas industries and more. We are capable of manufacturing and customizing A4 Series three-phase asynchronous motors fully compliant with GOST standards. Technical Parameters Frame size: 355 mm – 1120 mm Power range: 220 kW ~ 12500 kW Poles: 2 – 16 poles Rated voltage: 3300 V, 4160 V, 6000 V, 6300 V, 6600 V, 10000 V, 11000 V, 13200 V Rated frequency: 50 Hz Protection class: IP23 Cooling method: IC01 Mounting arrangement: IC01 Rotation direction: Clockwise (CW) / Counter-clockwise (CCW) Minor corrections & optimization notes minings → mines; metallurgic plants → metallurgical facilities / metallurgical plants Standard unit format: kW, Hz, V with consistent spacing Fixed typo 132000V to 13200V (likely input slip error) Distinguished Cooling / Mounting with standard industry terms "method / arrangement" Rewrote stiff sentence "in conformity with" to natural industrial wording "fully compliant with" Removed redundant "etc." after listing complete major industries
Frame size: 355 mm ~ 1120 mm Power: 200 kW ~ 20 MW Number of poles: 2 ~ 16 poles Rated voltage: 3300 V, 4160 V, 6000 V, 6300 V, 6600 V, 10000 V, 11000 V, 13200 V Rated frequency: 50 Hz Protection degree: IP23 Cooling method: IC01 Mounting arrangement: IM1001 Rotation direction: Bi-directional
High-Voltage Asynchronous Motors The YKK series high-voltage three-phase asynchronous motors cover frame sizes from 355 mm to 1120 mm. Independently developed by our company, this product range integrates advanced domestic and overseas technologies. We adopt state-of-the-art field analysis technology for electromagnetic computation, with precise calculation and optimized design for power losses, wind resistance and structural strength of every component. Supported by our mature, stable design and production system and more than 70 years of experience manufacturing medium and large high-voltage AC motors, the motors are fabricated with premium raw materials and standardized processing techniques. They feature high efficiency, low noise, low vibration, excellent operational reliability, as well as convenient installation and maintenance. This series primarily drives general industrial machinery including fans, pumps, compressors, crushers, chip removing machines and conveying equipment. It serves petroleum, chemical, coal, power plant, metallurgical, transportation, textile, pharmaceutical and grain processing sectors. II. Advantages & Characteristics By digesting advanced domestic and international technologies, we adopt field-circuit coupled electromagnetic design for the YKK series. This greatly boosts electromagnetic calculation accuracy and delivers precise maximum torque multiple values, fully securing the motors’ reliable overload capacity. Finite Element Method (FEM) mechanical analysis is applied throughout structural design and repeatedly validated through field operation data. Accurate boundary conditions are set for mechanical models to optimize material utilization and suppress motor vibration and noise. FEM analysis fits all cooling configurations and realizes high-precision, visualized air flow distribution simulation. It elevates the accuracy of temperature rise prediction during design, cuts ventilation losses and further lifts overall motor efficiency.
