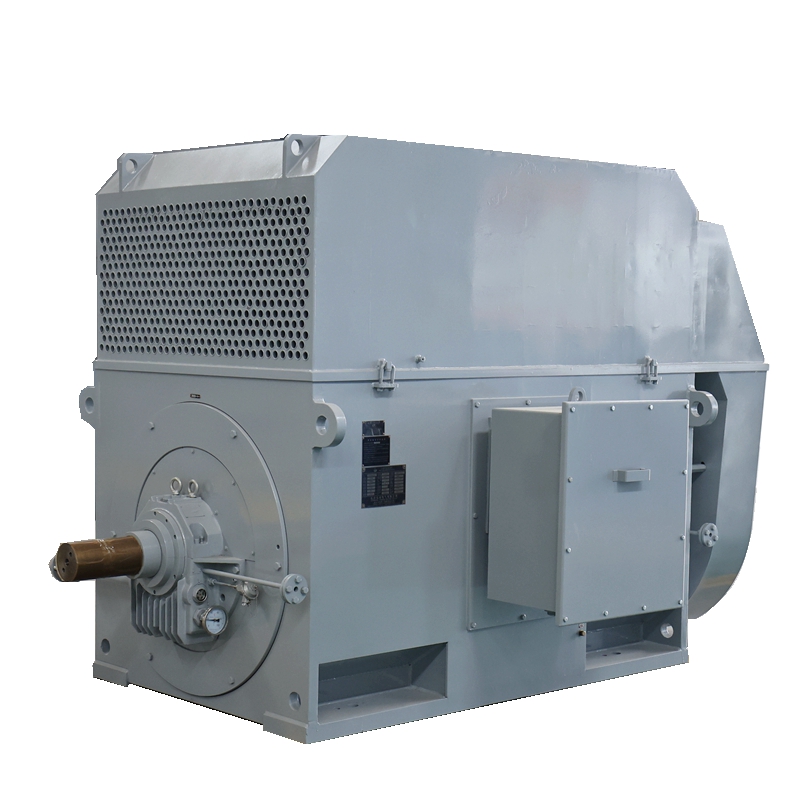

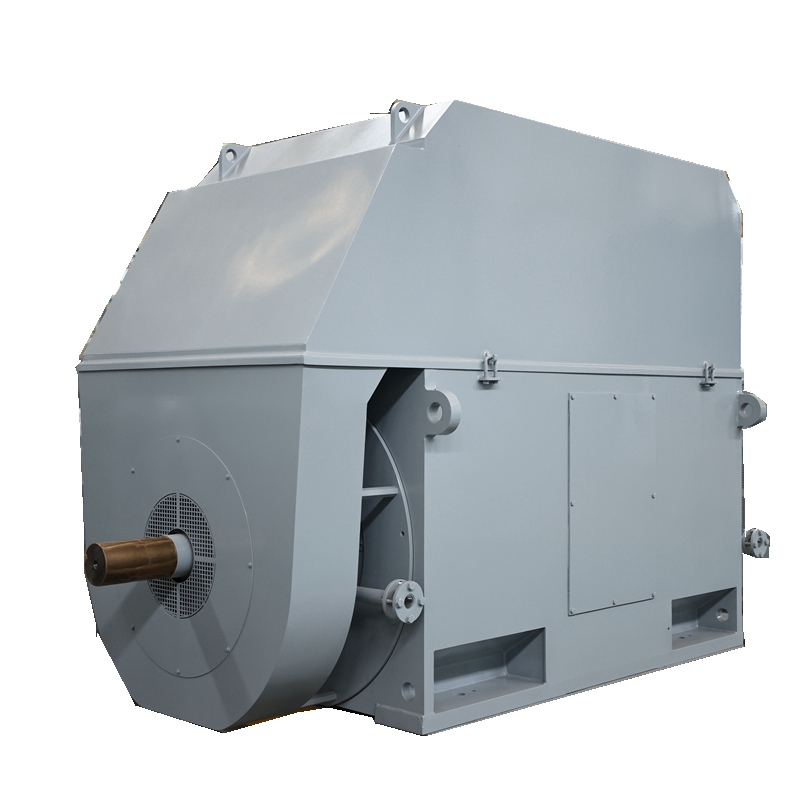

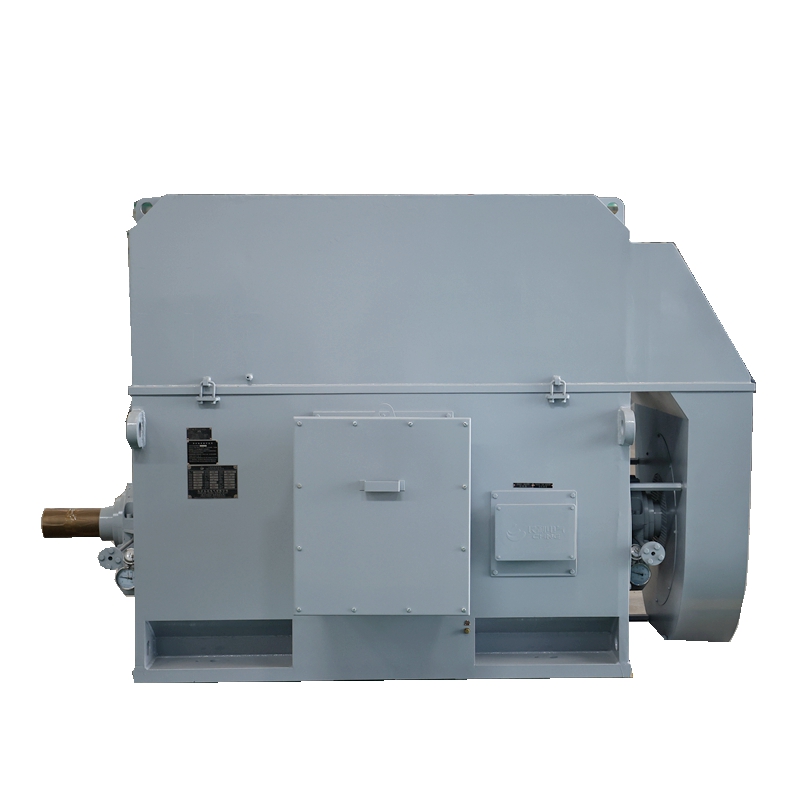

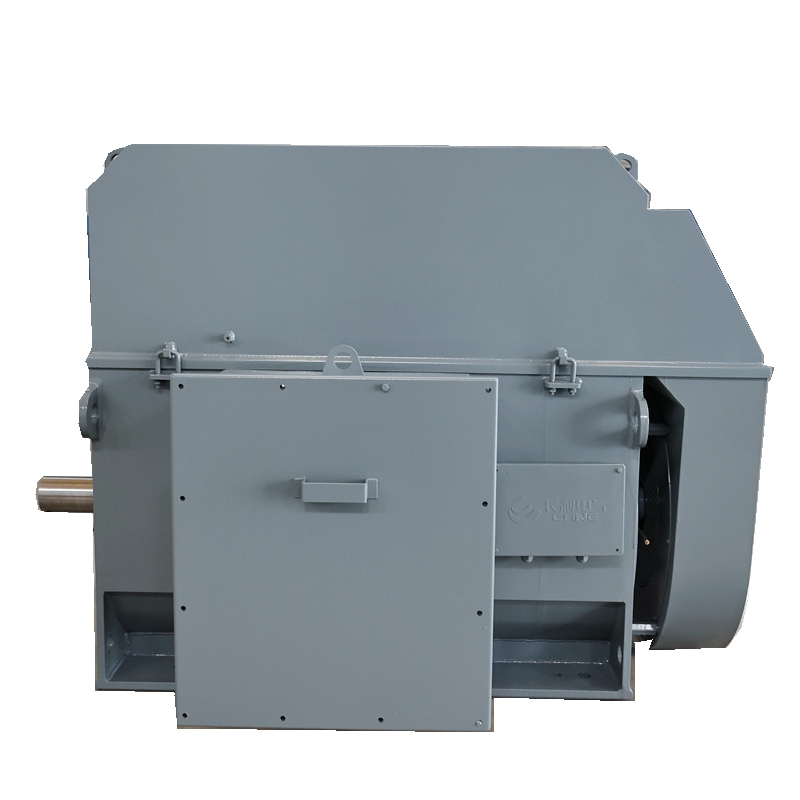

YKK Series High-Voltage Three-Phase Asynchronous Motors Covering frame sizes from 355 mm to 1120 mm, the YKK series high-voltage three-phase asynchronous motors are independently developed by our company after assimilating advanced domestic and international technologies. We employ cutting-edge field analysis technology for electromagnetic computation, with precise calculation and optimized design for power losses, wind resistance and structural strength of every single component. Supported by a mature and stable design & production system, as well as over 70 years of experience in manufacturing medium and large high-voltage AC motors, this series is fabricated with premium raw materials and rigorous machining processes. The motors feature high efficiency, low noise, minimal vibration, outstanding operational reliability, plus convenient installation and maintenance. This motor series is widely matched with general industrial machinery including fans, pumps, compressors, crushers, chip removal machines and conveying equipment, serving petroleum, chemical, coal, power plant, metallurgical, transportation, textile, pharmaceutical and grain processing sectors. II. Advantages & Technical Features Drawing on domestic and overseas advanced technologies, we adopt field-circuit coupled electromagnetic design for the YKK series. This method greatly improves electromagnetic calculation accuracy and outputs precise maximum torque multiple values, fully securing excellent overload capacity of the motors. Finite Element Method (FEM) mechanical analysis is applied throughout structural design and continuously validated by practical operation data. Accurate boundary conditions are set for mechanical models to optimize material utilization and effectively suppress motor vibration and noise. Meanwhile, FEM analysis is compatible with all cooling types and delivers high-precision, visualized airflow distribution simulation. It enhances the accuracy of temperature rise calculation during design, cuts ventilation losses and raises the overall energy efficiency of the motors.
The YKK series consists of heavy-duty, high-efficiency high-voltage squirrel cage induction motors independently developed by Changli Electric. Optimized via advanced electromagnetic field simulation and FEM mechanical analysis, this motor line delivers outstanding performance for numerous industrial sectors including petrochemical, cement, steel, mining and power generation.
Drawing on more than 70 years of professional motor manufacturing experience, our YKK motors are engineered for long service life, low noise, minimal vibration and strong overload resistance. They serve as reliable driving solutions for brand-new machinery and equipment retrofits alike.
View our complete range of high-voltage motors
Visit Changli Electric official website to learn about our manufacturing strength
Contact our team for professional technical support
The YKK (AMI) high-voltage three-phase asynchronous motors cover frame sizes from 355 mm to 1120 mm. We developed this series by integrating mature advanced domestic and international technologies. Modern field analysis tools are adopted for precise electromagnetic computation, while every component is finely calculated and optimally designed to cut power loss, lower wind resistance and boost structural strength.
Supported by a stable, proven design and production system and our decades of experience in medium & large high-voltage AC motor production, the motors are manufactured with premium raw materials and precise machining workflows. Core strengths include high efficiency, low noise, low vibration, excellent operational stability and straightforward installation & maintenance.
They are widely applied to drive standard industrial equipment such as fans, pumps, compressors, crushers, chip removal machines and conveyors for petroleum, chemical, coal, power plant, metallurgical, transportation, textile, pharmaceutical and grain processing industries.
YKK series motors are extensively adopted in industries demanding stable high-voltage operation:
All measuring tools and test instruments receive annual calibration.
Each motor undergoes full-range strict quality inspection and process monitoring.
| Name | Inspection item |
| Coil | 1. Physical and chemical tests for raw materials |
| 2. Coil winding process inspection | |
| 3. Winding dimension inspection | |
| Iron Core | 1. Physical and chemical test report for silicon steel sheet material |
| 2. Lamination burrs and paint film inspection | |
| 3. Dimensional inspection of laminated steel sheet | |
| Frame | 1.Cold welding parts conformity certificate |
| 2. Finish machining inspection | |
| Rotor | 1. Rotor core lamination inspection |
| 2. Conducting bar welding | |
| 3. Check the material, appearance, conductivity and size of the conducting bar end ring | |
| 4. Check the fastening of the conducting bars in the slots | |
| 5. Dimensional check, including iron core outer diameter | |
| 6. Dynamic balance correction | |
| Shaft | 1. Raw material , annealing check |
| 2 Finish machining check | |
| Stator | 1. Iron core compactness check |
| 2. Check iron core length and section length | |
| 3 Inserting winding check | |
| 4. Iron consumption check | |
| Assembly | 1. Plain bearing size and surface quality check |
| 2. Check the size of the air gap, the coincidence of the axial centerline of the stator and rotor core, the gap of inner fan and windshield | |
| 3 Cleaning check inside the motor | |
| 4 Shaft center height and installation size check | |
| Test | 1. Routine test |
| 2. Type test |
Test Items
Each motor must be tested before leaving the factory. Only all the items are qualified, can the motor be delivered. Each motor will have a test report.
| Routine test items | Type test items |
| Winding three-phase DC resistance | Full load input power |
| Winding insulation resistance to ground | Full load current |
| Winding withstand voltage test | Stator winding loss |
| No-load current | Rotor winding loss |
| No-load power | Iron loss |
| No-load loss | Mechanical loss |
| Three-phase no-load current imbalance | Other losses |
| Locked rotor current | Full-load slip ratio |
| Locked rotor torque | Stator winding temperature rise |
| Maximum torque | Bearing temperature |
| Rotation direction | Thermal winding insulation resistance |
| Vibration: horizontal, vertical, axial | Overload test |
| Noise | Full-load power factor |
| ... | Efticiency |
| ... |
Standard total coating thickness is 120 microns, composed of a 40-micron primer coat and an 80-micron topcoat.
Our certified professional coating technicians can formulate and apply any custom color as requested by customers.
Standard export-grade seaworthy packaging is provided.
Available options include plywood crates or fumigated wooden cases, ideal for long-distance ocean shipping.
Standard warranty coverage lasts 12 months after equipment commissioning or 18 months following shipment, whichever occurs earlier.
For extended warranty solutions, kindly contact our team for further information.
