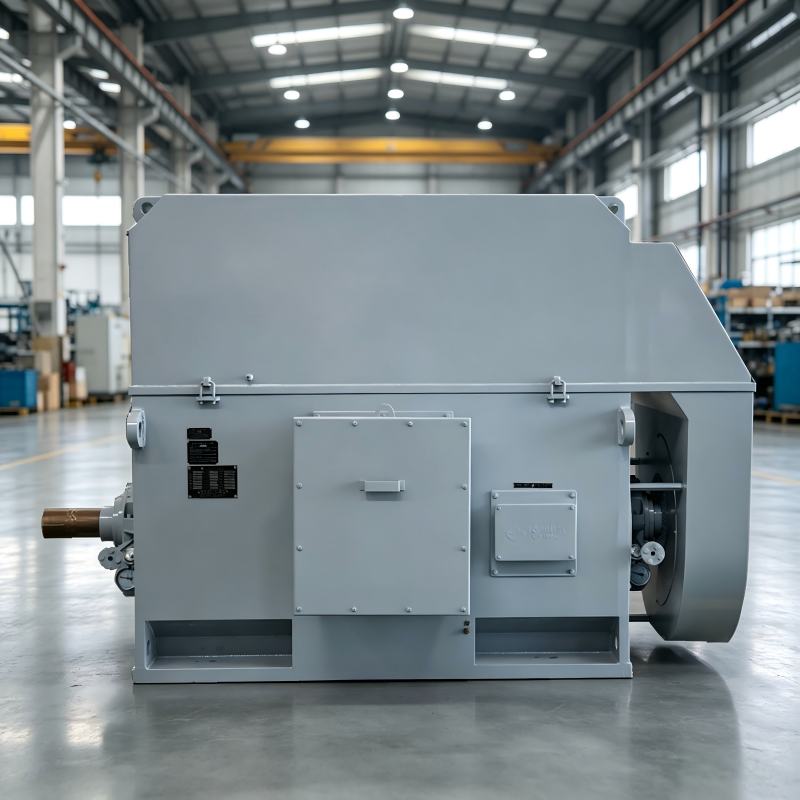

Why YKS Series High Voltage Motors are the Preferred Choice for Global Heavy Industry

In demanding environments where air quality is poor or ambient temperatures are excessive, standard air-cooled motors often struggle with overheating and internal contamination. This is where the YKS Series (Air-to-Water Cooled) High Voltage Motors excel.

At Changsha Changli Electric, our YKS series is engineered to provide stable power output under conditions that would compromise other motor types.

1. The Power of IC81W Cooling Technology

The defining feature of the YKS series is its IC81W cooling system. Instead of relying on ambient air to cool the internal components, the motor uses a top-mounted air-to-water heat exchanger.

• Contamination Protection: Since the internal air circulates in a closed loop, dust, salt spray, and corrosive gases from the external environment (common in Middle Eastern oil fields or Southeast Asian coastal plants) cannot enter the motor.
• Low Noise: Water-cooling significantly reduces the aerodynamic noise typical of large fan-cooled motors, making it ideal for noise-sensitive installations.

2. Built for High-Power Applications

The YKS series is designed for heavy-duty drive requirements, commonly powering:

• Centrifugal Pumps in water treatment and irrigation.
• Fans and Blowers in large-scale power generation.
• Compressors and Crushers in South American mining operations.

3. Key Technical Specifications

Our YKS motors are manufactured to meet and exceed IEC standards, offering:

• Voltage Range: 3kV, 6kV, 10kV, and up to 13.8kV.
• Protection Class: IP54 or IP55 (Superior dust and water resistance).
• Insulation Class: Class F with Class B temperature rise for enhanced safety margins.
• Efficiency: Optimized electromagnetic design to ensure high efficiency and low vibration.

4. Durability in Extreme Climates

For our clients in Brazil, Chile, and the UAE, the YKS series offers a critical advantage: Independence from Ambient Air Temperature. As long as a cooling water source is available, the motor can maintain optimal operating temperatures even when the outside air exceeds 45°C.

The Changli Electric Advantage: Customization & Reliability

As a specialized technical expert at Changsha Changli Electric, Lisa and our engineering team ensure that every YKS motor is tailored to the specific mechanical load requirements of the client.

• VPI Process: All YKS windings undergo Vacuum Pressure Impregnation to ensure long-term dielectric strength.
• Rigorous Testing: Every unit is subjected to load tests and pressure tests on the water cooler to ensure zero leakage and maximum heat transfer.
